Lev-o-gage Sr. (Percent Slope Model)

$50.50
Lev-o-gage Sr. (Percent Slope Model)

Lev-o-gage Sr. (Percent Slope Model)

$50.50

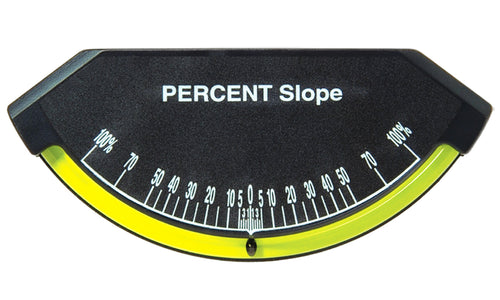

The Lev-o-gage™ Sr. (Percent Slope Model) is a large gauge (6.44" wide) that displays a slope range of -100% to +100%. It features a high-visibility Saturn Yellow tube assembly with special damping fluid that works down to -40 degrees F/-40 degrees C. Fully-enclosed housing protects glass tube assembly. Pressure-sensitive adhesive foam tape is included on the back for easy mounting.

MADE IN THE USA!

See below for more details and specifications.

Product Details & Specifications

Details

  • Range: -100 to +100 percent slope.
  • Screenprinted numerals and hashmarks.
  • Special damping fluid works down to -40 degrees F/-40 degrees C.
  • High-visibility Saturn Yellow tube assembly.
  • Fully enclosed housing protects tube assembly.
  • Pressure-sensitive adhesive foam tape on back for easy mounting.
  • High-contrast black indicator ball.

Specifications

  • Part Number: 3043-I
  • Angular Range: -100% to 100%
  • Temperature Range: -40° to 125° F
  • Dimensions: 6.44" W x 2.86" H x 0.80" D (16.4cm W x 7.3cm H x 2.0cm D)
  • Weight: 2.4 oz / 68g
  • Angular Tolerance: ±2.0°
  • Resolution: From 0% through 5%: 1%. From 6% through 50%: 5%.
