Lev-o-gage 4

$28.00
Lev-o-gage 4

Lev-o-gage 4

$28.00

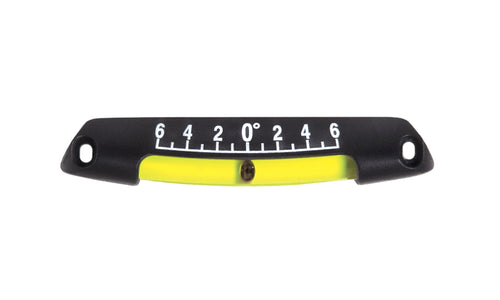

The Lev-o-gage™ 4 is a small (3.62" wide), high-resolution inclinometer that displays a range of -6 to +6 angular degrees. It features a high-visibility Saturn Yellow tube assembly with special damping fluid that works down to -40 degrees F/-40 degrees C. Adhesive foam tape is included on the back for easy mounting. Also includes two screws for screw-mounting.

See below for more details and specifications.

Product Details & Specifications

Details

  • Range: -6 to +6 angular degrees.
  • Pad printed hashmarks and numerals.
  • Special damping fluid works down to -40 degrees F/-40 degrees C.
  • High-visibility Saturn Yellow tube assembly.
  • Fully enclosed housing protects tube assembly.
  • Pressure-sensitive adhesive foam tape on back for easy mounting.
  • 2 mounting screws also included.
  • High-contrast black indicator ball.

Specifications

  • Part Number: 0606-I
  • Angular Range: -6° to 6°
  • Temperature Range: -40° to 125° F
  • Dimensions: 3.62" W x 0.68" H x 0.40" D (9.2cm W x 1.7cm H x 1.0cm D)
  • Weight: 0.4 oz / 8g
  • Angular Tolerance: ±0.8°
  • Resolution: 1°
