Lev-o-gage 4P (Percent Slope Model)

$30.00
Lev-o-gage 4P (Percent Slope Model)

Lev-o-gage 4P (Percent Slope Model)

$30.00

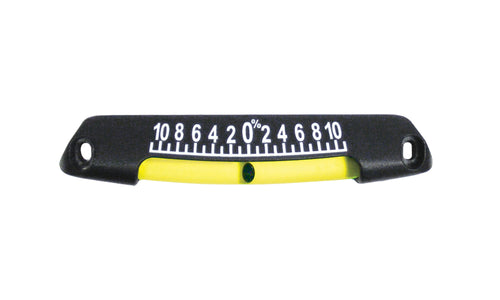

The Lev-o-gage™ 4P is a small (3.62" wide), high-resolution inclinometer that displays a range of -11 to +11 percent slope. It features a high-visibility Saturn Yellow tube assembly with special damping fluid that works down to -40 degrees F/-40 degrees C. Adhesive foam tape is included on the back for easy mounting. Also includes two screws for screw-mounting.

See below for more details and specifications.

Product Details & Specifications

Details

  • Range: -11 to +11 percent slope.
  • Pad printed numerals and hashmarks.
  • Special damping fluid works down to -40 degrees F/-40 degrees C.
  • High-visibility Saturn Yellow tube assembly.
  • Fully enclosed housing protects tube assembly.
  • Pressure-sensitive adhesive foam tape on back for easy mounting.
  • Two black screws included for optional hardware mount.
  • High-contrast black indicator ball.

Specifications

  • Part Number: 0607-I
  • Angular Range: -11% to 11%
  • Temperature Range: -40° to 125° F
  • Dimensions: 3.62" W x 0.68" H x 0.40" D (9.2cm W x 1.7cm H x 1.0cm D)
  • Weight: 0.4 oz / 8g
  • Angular Tolerance: ±1.0%
  • Resolution: 1%
