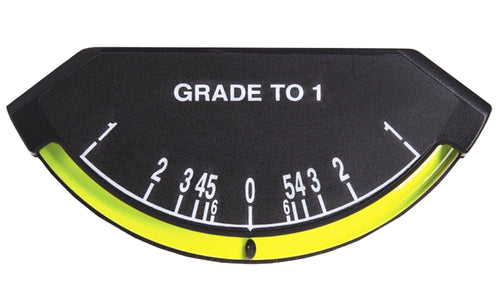

The Lev-o-gage™ Sr. (Grade-to-1 Model) is a large gauge (6.44" wide) that displays a grade range of 1-to-1 through 6-to-1. It features a high-visibility Saturn Yellow tube assembly with special damping fluid that works down to -40 degrees F/-40 degrees C. Fully-enclosed housing protects glass tube assembly. Pressure-sensitive adhesive foam tape is included on the back for easy mounting.
MADE IN THE USA!
See below for more details and specifications.
Product Details & Specifications
Details
- Range: 6-to-1 grade through 1-to-1 grade.
- Screenprinted numerals and hashmarks.
- Special damping fluid works down to -40 degrees F/-40 degrees C.
- High-visibility Saturn Yellow tube assembly.
- Fully enclosed housing protects tube assembly.
- Pressure-sensitive adhesive foam tape on back for easy mounting.
- High-contrast black indicator ball.
Specifications
- Part Number: 3042-I
- Angular Range: 6-to-1 through 1-to-1
- Temperature Range: -40° to 125° F
- Dimensions: 6.44" W x 2.86" H x 0.80" D (16.4cm W x 7.3cm H x 2.0cm D)
- Weight: 2.4 oz / 68g
- Angular Tolerance: ±2.0°
- Resolution: 1-to-1 through 6-to-1
