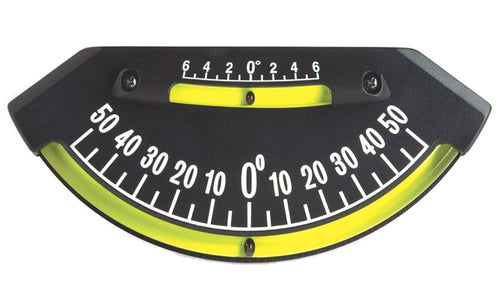

The Lev-o-gage™ 6 is a versatile dual-inclinometer with a large body (6.44" wide). It features a high-resolution inclinometer on top that displays a range of -6 to +6 angular degrees for fine readings. It also includes the bottom inclinometer that displays a range of -50 to 50 angular degrees for broad readings. The engraved and hand painted numerals and hashmarks are extremely durable in harsh conditions. It features a high-visibility Saturn Yellow tube assembly with special damping fluid that works down to -40 degrees F/-40 degrees C. Fully-enclosed housing protects glass tube assembly. 3M brand VHB (Very High Bond) adhesive foam tape is included on the back for easy mounting.
MADE IN THE USA!
See below for more details and specifications.
Product Details & Specifications
Details
- Double inclinometer. Range: -50 to +50 and -6 to +6 angular degrees.
- Special damping fluid works down to -40 degrees F/-40 degrees C.
- High-visibility Saturn Yellow tube assemblies.
- Fully enclosed housing protects tube assemblies.
- 3M brand VHB (Very High Bond) adhesive foam tape on back for easy mounting.
- High-contrast black indicator ball.
- Hand-painted (lower) and pad printed (upper) hashmarks and numerals.
Specifications
- Part Number: 5006-I
- Angular Range: -50° to 50° and -6° to 6°
- Temperature Range: -40° to 125° F
- Dimensions: 6.44" W x 2.86" H x 0.92" D (16.4cm W x 7.3cm H x 2.3cm D)
- Weight: 2.6 oz / 74g
- Angular Tolerance: ±2° on 50° Scale
- Resolution: 1° on Upper Scale. 5° on Lower Scale.
