Lev-o-gage Sr. (Degrees Model)

$36.00
Lev-o-gage Sr. (Degrees Model)

Lev-o-gage Sr. (Degrees Model)

$36.00

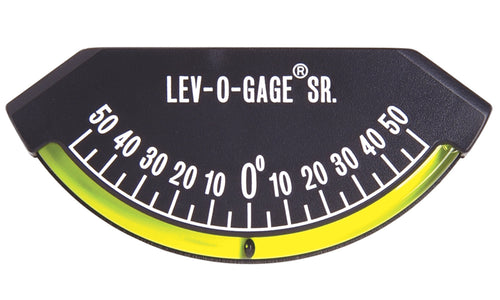

The Lev-o-gage™ Sr. is a large gauge (6.44" wide) and displays a range of -50 to +50 angular degrees. The engraved and hand painted numerals and hashmarks are extremely durable in harsh conditions. It features a high-visibility Saturn Yellow tube assembly with special damping fluid that works down to -40 degrees F/-40 degrees C. Fully-enclosed housing protects glass tube assembly. Pressure-sensitive adhesive foam tape is included on the back for easy mounting.

See below for more details and specifications.

Product Details & Specifications

Details

  • Range: -50 to +50 angular degrees.
  • Engraved and hand painted numerals and hashmarks are extremely durable and easy to read.
  • Special damping fluid works down to -40 degrees F/-40 degrees C.
  • High-visibility Saturn Yellow tube assembly.
  • Fully enclosed housing protects tube assembly.
  • Pressure-sensitive adhesive foam tape on back for easy mounting.
  • High-contrast black indicator ball.

Specifications

  • Part Number: 3041-I
  • Angular Range: -50° to 50°
  • Temperature Range: -40° to 125° F
  • Dimensions: 6.44" W x 2.86" H x 0.80" D (16.4cm W x 7.3cm H x 2.0cm D)
  • Weight: 2.4 oz / 68g
  • Angular Tolerance: ±2.0°
  • Resolution: 5°
